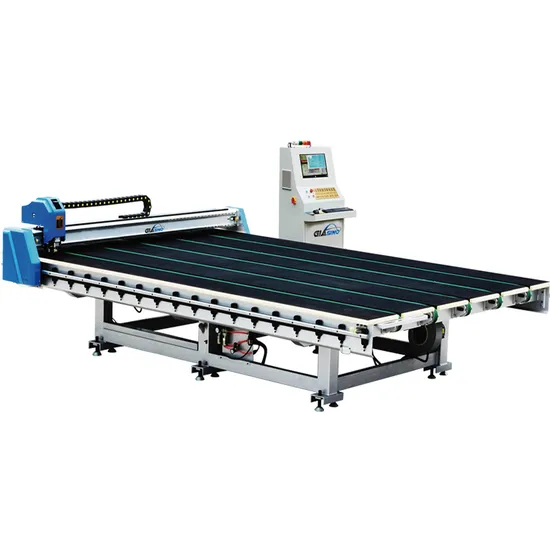

CNC Automatic Glass Cutting Machine Glass Cutting Line

Basic Info.

Model NO.	GS-CNC-4228
After-sales Service	1year
Optimization System	Optima
Servo	Yaskawa
Operating System	Galil
Transport Package	Sea Worthy Package
Specification	7T
Trademark	GLASINO
Origin	Jinan
Production Capacity	30sets/Month

Product Description

CNC AUTOMATIC GLASS CUTTING MACHINEThe line mainly contains three sections:
1GS-QSP-4228 Automatic Glass Loading Machine
2 GS-CNC-4228 Automatic Shaped Glass Cutting Machine
3 GS-QP-4228 Glass Breaking Table

Glass Cutting Machine characteristic:

• Mn bridge steel (Q345A ), perfect surface treatment
• Perfect machine body structure makes sure the tale flat enough and no out of shape
• Japan SMC valve controls the cutting pressure according to different thickness glass
• Cutter head 360 degree rotation, cutter head buffers up and down for glass and cutter protections
• High density water-proof table
• Imported felt, high flatness, antistatic
• 3D edge searing system, high precision automatic location function
• Automatic lubrication system, work in step with cutter head
• Air float function and belt transmit
• Linear guide rail makes sure the high cutting precision and low noise

Main mechanical parts:

• Table panel: high density water proof panel (flatness≤±0.20mm/m)
• Rack and rail: KHK Japan
• Guide rail: Hiwin Taiwan
• Belt: Maiku (Joint venture)
• Cutter wheel and cutter holder: Bolhe Germany

CNC PARAMETER

Model	Max. glass size	Thickness	Dimensions (L*W*H)	Max. speed	Air pressure
CNC-2620	2600*2000mm	2~19mm	11000*3000*1300mm	150m/min	0.6~0.8MPa
CNC-4228	4200*2800mm	3~19mm	14500*3600*1300mm	160m/min	0.6~0.8MPa
CNC-5133	5100*3300mm	3~19mm	17000*4212*1300mm	160m/min	0.6~0.8MPa
CNC-6133	6100*3300mm	3~19mm	19980*4212*1300mm	160m/min	0.6~0.8MPa
