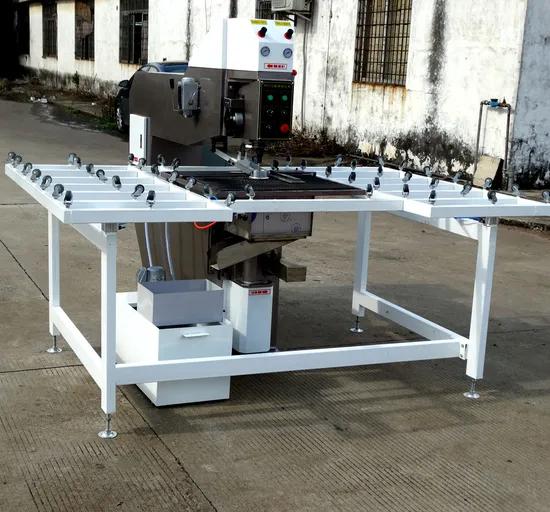

DGDM4220 Glass Continuous Automatic Drilling Machine

The machine has 3 types of operation: 1. Manual control for upper drilling bit
2. Upper bit Automatically Drilling
3. Continuous drilling is possible for the upper bit after every regular time ( time can be adjusted)

1) Technical Specification
1. The thickness of processed glass:3mm--25mm
2. Drilling diameter: φ3mm-φ80mm
3. Maximum size of processed glass: 2600×1800mm
4. Occupying area: 2500×1700×1700mm
5. Total power: 4KW
6. Gross weight: 950kg
2) Processing Precision's Inspection and Acceptance
1. The coaxial error of upper and lower main spindles is less than ¢ 0.2mm.
2. The perpendicularity error between the worktable and axis of the main spindle is less than 0.12mm within ¢300mm.
3. Run out of spindle taper hole central line: 50mm away from spindle nose is 0.1mm.
4. The glass hole diameter error for processing glass is less than 0.3 mm, glass hole rough edges error for processing glass is less than 0.5mm.
3) The processed glass is pneumatically gripped, drilling is alternatively done by upper and lower drills. Feeding is automatically operated.
The operation platform can be pneumatically elevated for moving glass. It can operate on a wide surface.
