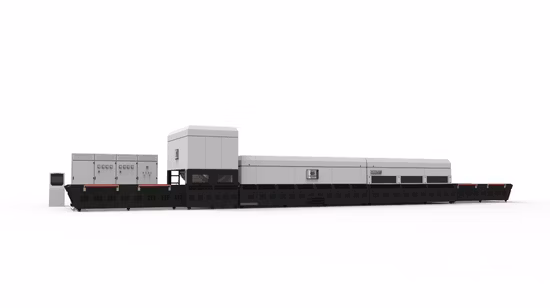

Flat/Bent Glass Tempering Furnace, Flat Glass Tempering Machine, Bent Glass Machine

Basic Info.

Model NO.	LV-TFB2436-15L
Voltage	as Customer′s Factory
Certificate	Ce, UL, CSA
Thickness	3-19mm
Warranty	12 -24 Months
After-Sales Service	Online Support, Free Spare Parts, Installation
Dimension(L*W*H)	According to Machine Size
Power(W)	According to Machine Size
Inverter	Siemens
Blower Inverter	Schneider or Siemens
Machine Type	Glass Tempering Furnace
Model	LV-Tfbq
PLC	Siemens
Blower	Taixin, Taiwan
Ceramic Roller	Vesuvius
Transport Package	Container
Specification	as customized
Trademark	Lever
Origin	Luoyang, China
HS Code	84752919
Production Capacity	100 Sets/Year

Product Description

Suitable For Glass Type (Glass Can Be Tempered)
1. Clear float glass2. Reflective glass3. Hard & Soft Low-E glass (E≥0.01)4. Patterned glass5. Body-tinted glass6. Silk screen printed glass
Machine Application
Flat/bent glass tempering furnace is a special plant used to produce the flat and bent tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), automotive side door/window, shower room, home appliance, garden fence, elevator, furniture, etc.With force convection system, the Low-e glass could be processed, especially for soft (off-line) Low-e glass.
Technical Features:
1. Ceramic plates installed at the top of oven, which could ensure more even heating, avoid dregs falling2. Ceramic rollers system driven by triple belts, which can ensure better simultaneous and stable running, and avoid the scratch and destroy of glass when above the rollers. It would not affect the running when any one of belt damaged.3. Same top quality insulating materials for whole heating oven4. Heating elements use the gapless design (parallelogram shape), which could make the heating more even. This could improve the finished product rate and better product quality.5. Using ceramic support for heating elements, which could avoid earth to avoid heater trouble6. Upper and lower quenching could be moved separately, which is convenient to adjust the flatness of glass.7. Quenching use whole overall folding.8. More air in-let in quenching section, which guarantee more homogeneous air blowing.9. Upper cover of quenching section could be lifted up and down vertically through cylinder, which save place and easy for checking.10. Glass position could be displayed onto the main interface11. Intelligent design for glass coming-out from the quenching section, which could avoid crash in unloading section, and avoid that glass could not come out from heating oven.12. Lifting frame could come down automatically which could avoid crash with the glass coming from quenching section.13. Automatic detect of heating element14. Ceramic support for heating elements, avoid earth to avoid heater trouble.15. Multi-belts for ceramic roller driving.16. Gapless (parallelogram shape) heating technology.17.Servo motors & servo controllers for bending forming18. Glass position could be displayed onto main interface19. Preventive function for wrong operation.20. Network data for servo motor control mode to avoid disturbance.
Supply Scope: 1. Loading table2. Heating section with force convection system at the top of oven (Vesuvius ceramic roller)3. Flat tempering & cooling section4. Bent tempering & cooling section5. Unloading table6. Blower system (Taixin Blower; Siemens Blower motor)7. Electrical & control system (Siemens PLC, Computer, etc)8. Spare parts as listed in appendix9. Technical documentsPopular Machine model ,customized available.

Popular Machine model for flat glass tempering furnace, customized available.

Model	Flat Tempered Glass (mm)
	Max. Size(mm)	Min. Size(mm)	Thickness(mm)	Capacity 5mm(Loads/Hour)
LV-TF0812	800x1200	100x150	3-19	15-16
LV-TF1225	1200X2500	100x250	3-19	15-16
LV-TF1525	1500X2500	100x250	3-19	15-16
LV-TF1742	1700X4200	100x250	3-19	15-16
LV-TF1836	1800X3600	100x250	4-19	15-16
LV-TF2036	2000X3600	150x280	4-19	15-16
LV-TF2242	2200X4200	150x280	4-19	15-16
LV-TF2436	2440X3660	150x280	4-19	15-16
LV-TF2442	2440X4200	150x320	5-19	15-16
LV-TF2450	2440X5000	150x280	4-19	15-16
LV-TF2860	2800X6000	200x350	5-19	15-16
LV-TF3060	3000X6000	200x350	5-19	15-16
LV-TF3360	3300X6000	200x500	5-19	15-16
LV-TF3380	3300X8000	200x500	5-19	14-15
LV-TF33120	3300X12000	200x500	5-19	14-15
