EVA Solar Panel Film Produce Machine Glass Middle Layer Lamination Film Machine

Overview

Basic Info.

Model NO.	0.38mm
Condition	New
Transport Package	Ocean Transportation Standard Pack
Trademark	DELTA
Origin	China
HS Code	84770000

Product Description

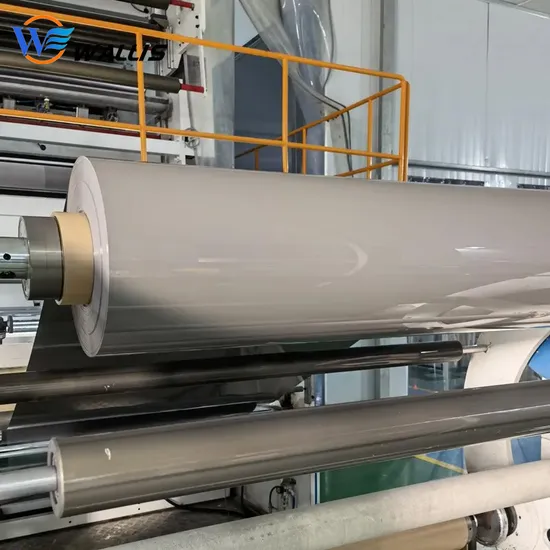

Product DescriptionFinished ProductsEVA (ethylene vinyl acetate copolymer) packaging film is used for solar cell packaging. After lamination and curing, it is bonded and sealed, which plays the role of high light transmittance, preventing water vapor penetration, high and low temperature resistance, UV resistance, etc. to ensure the stable and efficient use of battery modules. It is a durable and reliable packaging material.It also applies to: Daily necessities: rain gear, environmental protection saliva shoulder, eye mask, tablecloth, shower cap, shower curtain, water bag, ice bag, anti slip pad, wardrobe, etc Sanitary products: medical surgical clothes, urine bags and food packaging, etc Packaging supplies: dust cover for computer and electrical appliances, soft packaging for cosmetics, shopping bags, gift bags, fashion packaging, handbags, etc Stationery: folder, file bag, stationery box bag, high-grade stationery, etc Outdoor supplies: water bag, fishing bag, tent, all kinds of racket sets, etc Product specification: thickness 0.2-0.8mm, width 1000-2000mmPVB(Polyvinyl Butyral) glass laminate film has good adhesion to inorganic glass and has many functions such as safety, heatpreservation, noise control and ultraviolet insulation. Product is mainly used for buildings, automobiles etc..Productthickness:0.38 mm, 0.76 mm, 1.52 mm, width 2000-3600mm.

Mechanical ConfigurationEquipment composition: automatic weighing metering system, extrusion system, forming system, stress relief system, online automatic thickness measurement and defect detection system, and automatic winding system.

1. Working condition:power	380V/ 50Hz 3P+N+E
cooling water	Temperature , under 30ºC,pressure2-4Kg/cm2G,water flow capacity 60m3/hr, water consumption 1.5m3/hr
compressor air	Pressure 0.6-0.8Mpa,air consumption 1.5m3/hr
installation place	Inner door (temperature 0ºC-50ºC,relatively humidity 20%-80%)
2. Material :	EVA resin (melting point 65ºC,melt index 40g/10min,VA:32.5,surface shore hardnesss:18),liquid additives
3. Film specification :	L=2000mm,δ=0.25-1.0mm
4. Extruding capacity :	250-350Kg/h (Max)
5. Design liner speed :	10 m/min(Max)

Composition of production line: 1. Delta 120 / 30 single screw extruder 1set 2. Delta 120 hydraulic quick screen changing device 1set 3. Delta 2150 sheet extrusion die 1set 4. Delta 1200 vertical three roller calender 1set 5. Delta independent roll temperature control device (water temperature type) 3sets 6. Delta 2200 sheet slow cooling device 1set 7. Delta trimming device 1set 8. Delta 2200 sheet traction device 1set 9. DELTA 2200 1set 10. Delta 2200 winder 1set 11. PLC full computer control

we produce high quality machine , we have long time experience on this price technology.we exported to Brazil, Turkey, Russia, and other countries. we have CE certificate .
