Glass Straight Line Double Edger Grinding and Polishing Processing Machine with Ce Certificate (Jfsz
Basic Info.
| Condition | New |
| Number Grinding | 20 |
| Glass Drive Speed | 0.5-6.8m/Min |
| Weight | 8500kg |
| Total Power | 45kw |
| Max Glass Size | 4200mm |
| Min Glass Size | 300mm |
| Glass Thickness | 3-25mm |
| Transport Package | Wrap Film+Wooden Box |
| Specification | 4880x4450x2100mm |
| Trademark | GLOBAL JINFENG |
| Origin | China |
| HS Code | 8464201000 |
| Production Capacity | 20set/ Month |
Product Description

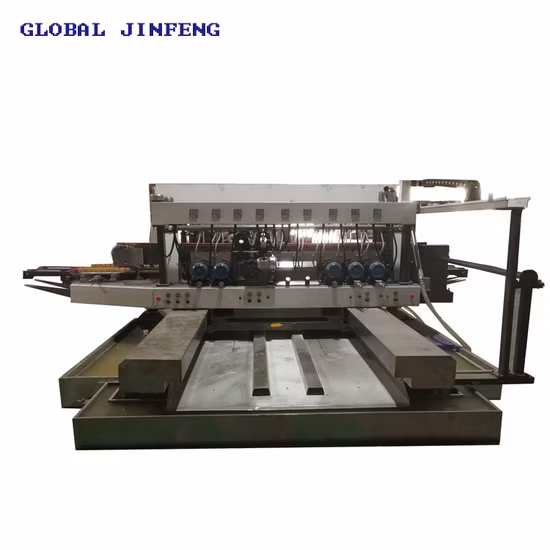

Glass Straight Line Double Edger Grinding and Polishing Processing Machine with Ce Certificate (Jfsz-4200)
***************************************************************
1.Intelligence,the polishing stability,especially for long glass,can effectively guarantee the whole glass polishing is the same.
2.High speed,the opening/closing and transmission system are using servo motor.
3.Efficient,motor through the indirect drive,the grinding wheel reach speeds up to 3500r/min
4.Energy saving,motor using permanent magnet motor,power can save about 10% than ordinary motor's power.
Technical Parameters
| Model | JFSZ-4200 |
| Max.glass size | 4200mm |
| Min. glass size | 300mm |
| Glass thickness | 3-25mm |
| Processing speed | 1-6.8m/min |
| Chamfer width | 1-3mm |
| Glass parallel tolerance | ≤0.2mm/m |
| Glass diagonal tolerance | ≤0.5mm/m |
| Chamfer tolerance | ≤0.2mm/m |
| Power | 45kw |
| Weight | 8500kg |
| Dimension | 4880x4450x2100mm |
About our company :
Global Jinfeng Co,.LTD is a professional glass machinery company for glass machine manufacturer and sales.Our company mainly manufacture the glass processing machines, such as the glass grinding and polishing machine.
People-oriented,Customer First,Innovation, Honesty and Win-Win is the concept of our companyt.Till now we have old customers from USa,Mexico,Russia,Africa,India,Pakistan,Syria and many other countries such as Brazil,Vietnam,Austrilia,the Philippines,Egypt,Chilie and so on.
